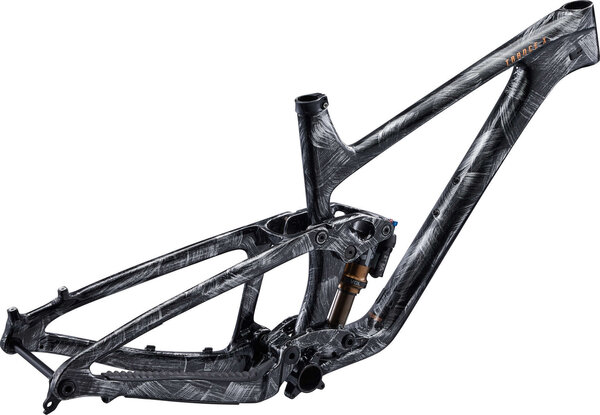

Giant Trance X Advanced Pro 29 Frameset

Giant Trance X Advanced Pro 29 Frameset
  • Color: Silver Safaris
$3,300.00
Color: Silver Safaris
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up. We will contact you when the item is ready to be picked up.

Details

Trance X Advanced Pro 29 Frameset

- Advanced-Grade Composite front and rear triangles
- 135mm Maestro suspension
- Flip chip
- 12 x 148mm thru-axle

Geometry

Geometry Chart:
SmallMediumLargeX-Large
LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A SEAT TUBE LENGTH (mm) 430 430 465 496
B SEAT TUBE ANGLE 77.2° | 77.9° 77.2° | 77.9° 77.2° | 77.9° 77.2° | 77.9°
C TOP TUBE LENGTH (mm) 566 | 564 597 | 595 629 | 627 656 | 654
D HEAD TUBE LENGTH (mm) 95 100 110 120
E HEAD TUBE ANGLE 65.5° | 66.2° 65.5° | 66.2° 65.5° | 66.2° 65.5° | 66.2°
F FORK RAKE (mm) 44 44 44 44
G TRAIL (mm) 125.1 | 119.5 125.1 | 119.5 125.1 | 119.7 125.1 | 119.5
H WHEELBASE (mm) 1173 1205 1239 1268
I CHAIN STAY LENGTH (mm) 438 438 438 438
J BOTTOM BRACKET DROP (mm) 40 40 40 40
K STACK (mm) 617 621 631 640
L REACH (mm) 426 456 486 510
M STAND OVER HEIGHT (mm) 729 729 752 760
N HANDLEBAR WIDTH (mm) 780 780 780 780
O STEM LENGTH (mm) 40 40 50 50
P CRANK LENGTH (mm) 165 170 170 170
Q WHEEL SIZE 29" 29" 29" 29"

Specs

Frame Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Silver Safaris / Small 4712878772823 2209013104
Silver Safaris / Medium 4712878772830 2209013105
Silver Safaris / Large 4712878772847 2209013107 210000065409
Silver Safaris / X-Large 4712878772854 2209013108
