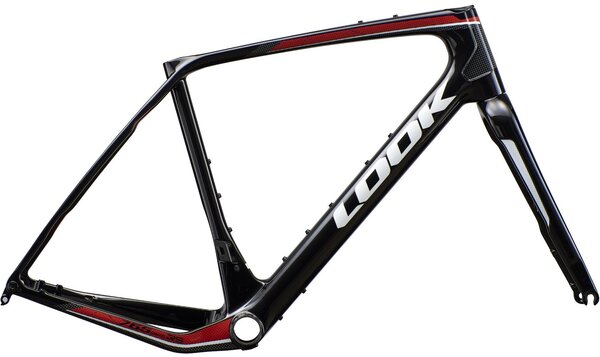

LOOK 765 Gravel RS Frameset

LOOK 765 Gravel RS Frameset
$3,000.00
Color:
Black Red Glossy
Please select options Unavailable
Sorry, this item is currently not available.

Details

Do you dream of your perfect gravel bike? The high modulus carbon 765 GRAVEL RS frameset is the perfect base for the ultimate custom ride to take on your next off-road adventures.

The 765 GRAVEL RS is the child prodigy that, from a very young age, has benefitted from all of LOOK's expertise! Its secret ambition is to become the master of the garage, as it ultimately wants to replace every other bike.

This bike is ultra-versatile. Within the wider GRAVEL family, there are 3 subsets emerging: racing, ultra-endurance, and travel. The ability to make use of off-road trails constitutes an infinite extension of its playing field. Thanks to the internet and the community effect, planning an impromptu weekend trip is quick and easy. Itineraries are discussed, designed, and shared.

The light and sturdy 765 GRAVEL RS bike is a genuine innovation when it comes to pushing your limits and experiencing adventure! Cycling needs to reinvent itself, to open itself up to new possibilities. Those who practice the sport need to be surprised, to experience a change of scenery, and most of all, to be challenged both physically and mentally.

bike frame with labeled dimensions
Bike Sizes:
XSSMLXL
A. Reach 355mm 365mm 375mm 385mm 395mm
B. Stack 530mm 554mm 578mm 602mm 626mm
C. Standover 745mm 765mm 793mm 816mm 843mm
D. Effective Top Tube 507mm 524mm 552mm 569mm 586.5mm
E. Head Tube Angle 70.3° 70.3° 70.3° 70.3° 70.3°
F. Head Tube Length 111.5mm 137mm 162.5mm 188mm 213.5mm
G. Seat Tube Angle 74° 74° 73° 73° 73°
H. Seat Tube Length 470mm 490mm 510mm 535mm 560mm
J. Bottom Bracket Drop 70mm 70mm 70mm 70mm 70mm
K. Fork Rake/Offset 50mm 50mm 50mm 50mm 50mm
L. Trail 72mm 72mm 72mm 72mm 72mm
N. Front to Center 577mm 595.5mm 614mm 632.5mm 651mm
O. Chainstay Length 420mm 420mm 420mm 420mm 420mm
Fork Length 395mm 395mm 395mm 395mm 395mm
Sizes:
Cyclist's height
X-Small < 65"
Small 65 – 68"
Medium 67 – 71"
Large 70 – 74"
X-Large > 73"

Specs

Frame UD Carbon-Finish High Modulus Carbon Frame
Fork Ultra Light High Modulus Carbon Fork

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black Red Glossy / X-Small 03611720189141 24494
Black Red Glossy / Small 03611720189158 24495
Black Red Glossy / Medium 03611720189165 24496
Black Red Glossy / Large 03611720189172 24497
Black Red Glossy / X-Large 03611720189189 24498
