Details

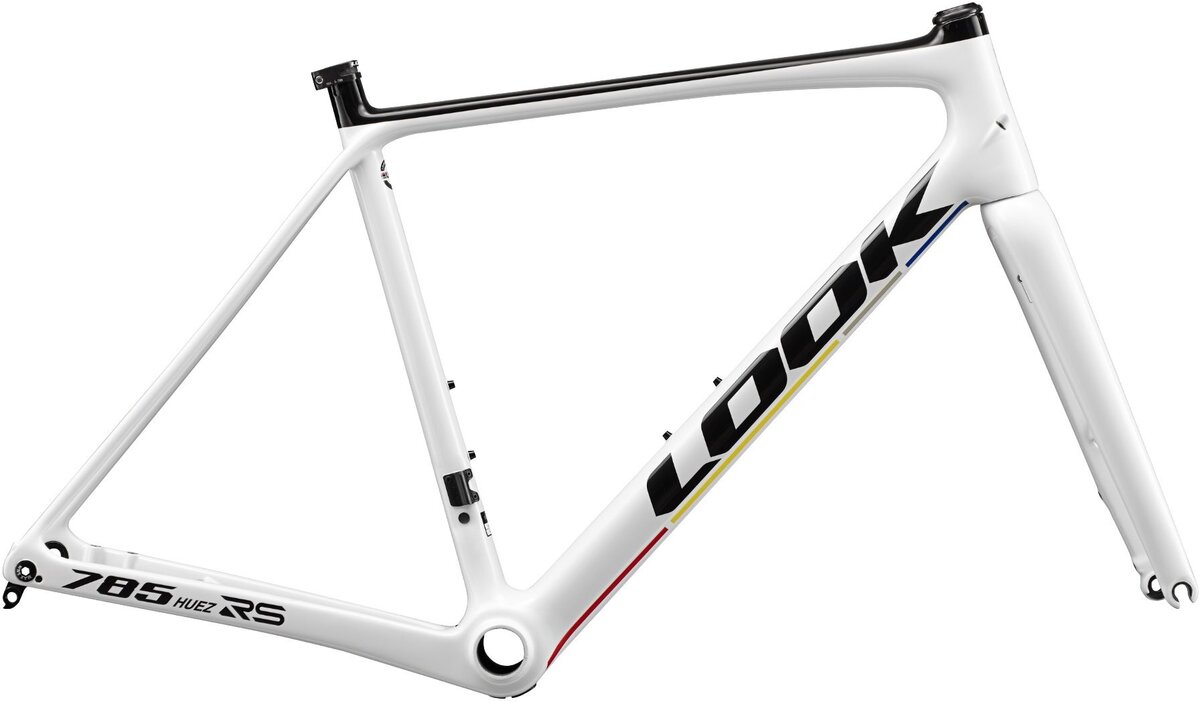

The 785 HUEZ RS DISC frameset is the perfect base for your future custom bike. This Very High Modulus carbon fiber model allows you to mount a mechanical or electronic groupset with flat-mount disc brakes.
The 785 HUEZ RS utilizes an elegant, well-thought-out design to create a frame that is incredibly lightweight and efficient, from the high mountains to the windswept plains.
The LOOK designers and engineers wanted, above all, to make the bike as light as possible, with optimal handling and a focus on pedaling efficiency. It's been designed with tube shapes that strike a balance between ride comfort and efficient transfer of power from the pedals to the rear wheel. The efficiency and comfort found in the frame do not come at the expense of extra weight, making it possible to build a bike under 5.9 kg.

XS | S | M | L | XL | |
---|---|---|---|---|---|
A. Reach | 365mm | 375mm | 385mm | 395mm | 405mm |
B. Stack | 510mm | 534mm | 558mm | 582mm | 606mm |
C. Standover | 712.8mm | 735.4mm | 769.7mm | 782.6mm | 807.2mm |
D. Effective Top Tube | 511.2mm | 528.1mm | 555.7mm | 572.9mm | 590.3mm |
E. Head Tube Angle | 71.8° | 71.8° | 73° | 73° | 73° |
F. Head Tube Length | 116.9mm | 142.1mm | 160.7mm | 184.7mm | 210.9mm |
G. Seat Tube Angle | 74° | 74° | 73° | 73° | 73° |
H. Seat Tube Length | 480mm | 504mm | 530mm | 554mm | 579mm |
J. Bottom Bracket Drop | 65mm | 65mm | 65mm | 65mm | 65mm |
K. Fork Rake/Offset | 50mm | 50mm | 43mm | 43mm | 43mm |
L. Trail | 58.5mm | 58.5mm | 58.4mm | 58.4mm | 58.4mm |
N. Front to Center | 567.6mm | 585.4mm | 584.3mm | 601.5mm | 618.9mm |
O. Chainstay Length | 415mm | 415mm | 415mm | 415mm | 415mm |
Fork Length | 368mm | 368mm | 368mm | 368mm | 368mm |
Cyclist's height | |
---|---|
X-Small | < 65" |
Small | 65 – 68" |
Medium | 67 – 71" |
Large | 70 – 74" |
X-Large | > 73" |
Specs
Frame | UD Carbon-Finish High Modulus Carbon Frame |
---|---|
Fork | Ultra Light High Modulus Carbon Fork |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Proteam White Glossy / X-Small | 03611720188809 | 24459 |
Proteam White Glossy / Small | 03611720188816 | 24460 |
Proteam White Glossy / Medium | 03611720188823 | 24461 |
Proteam White Glossy / Large | 03611720188830 | 24462 |
Proteam White Glossy / X-Large | 03611720188847 | 24463 |
